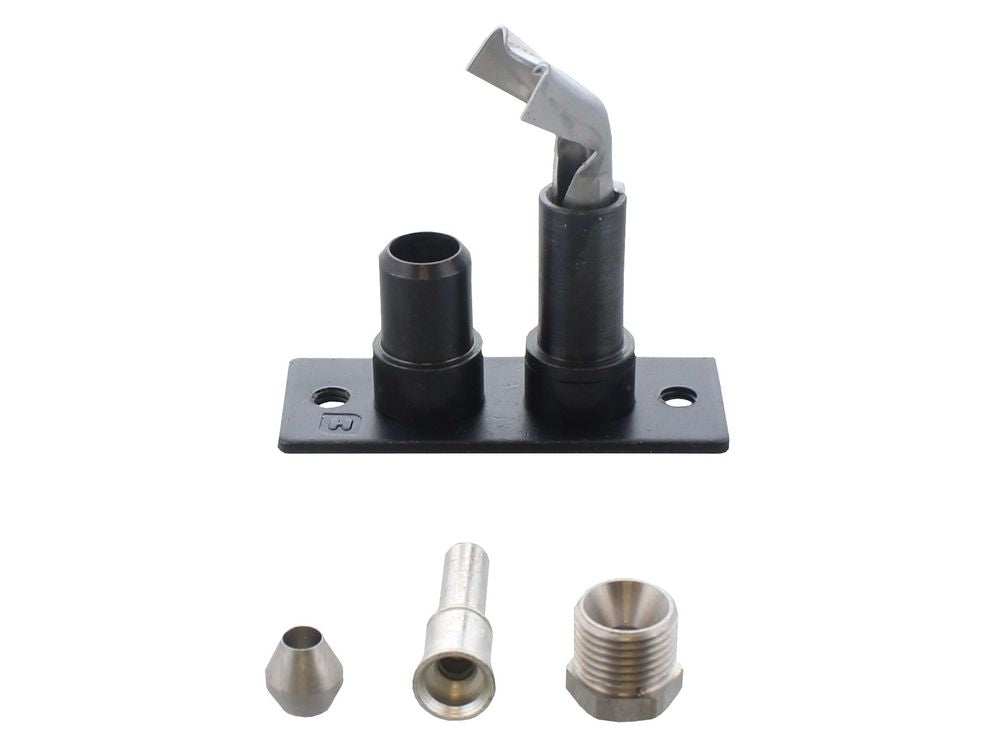

The Ideal 077105 Pilot Burner Assembly is a genuine replacement component that includes the pilot burner, injector, and fixing parts required to ensure reliable ignition within the boiler. The pilot assembly is responsible for producing the small, stable flame needed to ignite the main burner safely and consistently.

Over time, pilot burners and injectors can become blocked, worn, or damaged due to soot, debris, or general use—leading to ignition issues, intermittent firing, or boiler lockouts. This complete assembly restores dependable pilot operation and supports safe combustion.

Key Features

• Genuine Ideal pilot burner assembly

• Includes pilot burner, injector, and fixing components

• Ensures reliable pilot flame for safe ignition

• Helps resolve ignition failures and lockout problems

• Direct-fit replacement for quick, accurate installation

Compatible With

This pilot burner assembly is suitable for:

• Ideal CX 40

• Ideal CX 60

• Ideal CX 80

• Ideal CX 100

(Models within the CX 40–100 range)

Always check your boiler manual or confirm the part number (077105) to ensure correct compatibility.
