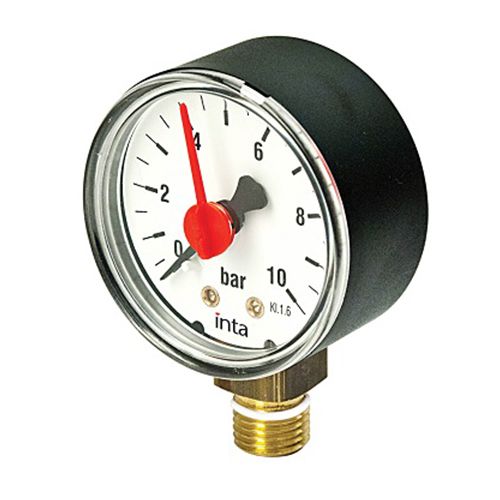

The 0–10 Bar 50 mm Dial Pressure Gauge with 1/4″ Bottom Entry is an analog pressure indicator designed to monitor fluid pressure in plumbing, heating, and pressurised systems. It provides a clear visual readout across a wide range of pressures, making it suitable for applications that operate above typical domestic central heating pressure levels.

Function & Purpose

This gauge displays system pressure from 0 to 10 bar on its 50 mm diameter dial, allowing easy, at-a-glance monitoring. The bottom entry connection means the threaded port is located at the base of the gauge, so it installs neatly into manifolds, boiler pressure tappings, vessels, or panels where the pipeline connection is below the gauge. This type of gauge is commonly used in systems with higher operating pressures, such as pressurised hot water circuits, commercial boilers, plant rooms, and certain hydraulic applications.

Compatibility

The gauge is fitted with a 1/4″ threaded connection, which is a standard size for pressure ports on boilers, pressure vessels, manifolds, and related system components. It is appropriate for use with both water and other compatible fluids within the specified pressure range.

Design & Build Quality

The 50 mm dial provides a large, easy-to-read scale marked from 0 to 10 bar. The casing and internal mechanism are designed to withstand typical operational temperatures and pressures found in higher-pressure systems. The bottom entry configuration allows installation in tight spaces or control panels where rear connections would be impractical.

Key Benefits

This pressure gauge helps:

Provide accurate and continuous monitoring of system pressure
Assist installers and technicians during commissioning, servicing, or adjustment
Improve safety by allowing early identification of pressure that is too high or too low
Support efficient operation of boilers, pressurised circuits, and plant equipment

Ideal Applications

The 0–10 bar pressure gauge with bottom entry is ideal for:

Commercial and light industrial boilers
Pressurised hot water systems and vessels
Hydraulic circuits requiring higher pressure monitoring
Manifolds and plant room control panels
Systems where the pressure connection is located below the gauge mount

By providing a reliable visual indication of pressure, this gauge supports safe, efficient operation and helps technicians diagnose system conditions quickly during installation and maintenance.
